For 'OO'  'HO'  gauge layouts.

For the Dedicated N Gauge version go to 'Vortrak N' in controllers on front page PRODUCT CATEGORY

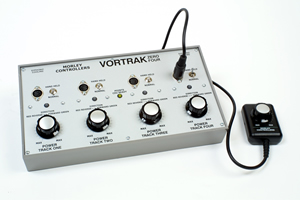

The Vortrak Four Track Controller has state of the art design,electronics and construction,producing the very best in performance and capability.Complete with two hand-held controllers.

Ideal for multi-use ie.Four main lines .Two main lines + 2 sidings.Three main lines + 1 sideing.etc etc.allows you to shunt whilst the main lines accomodate the expresses etc.

 The 220/240 Volt AC mains-powered controller is designed with FOUR TRANSFORMERS,to supply correct voltage to each track.Automatic re-set 1.1amp circuit breakers are fitted to each track to protect against overload.

Unique to Morley,the Vortrak controller is designed with an on-board Heavy Duty Capacitor Discharge Unit  (HD/CDU).When used with a correct switch it will activate the points motor,giving it a firm,positive,short burst of current,being of short duration it prevents points motor burn out.A "points CDU ready" LED indicator is situated on the front panel.Points motor wiring diagram supplied.If you wish to use the CDU for 'routeing',i.e. activate more than one and up to four point motors at the same time please phone your order indicating this.

The screen printed front panel gives perfect indication of the settings of switches and controls,supported by LED indicators,a dual LED for power and direction,plus the CDU LED.

Centre off power controls,provide locomotive direction change,together with perfect smooth control at slow speeds,as well as fast.

Two 12 Volt DC uncontrolled accessory outputs are provided,with protection from 1 amp circuit breakers.

Two hand-held units each with a 5 metre lead are included,with centre off controls providing power and direction change.

Output connections are by Screw Type PCB terminal blocks.

Desk type dark grey case with sloping aluminium front.

A 1.5 metre UK mains power lead is fitted as standard.

Fully tested and guaranteed for 5 years.

Our controllers do not have any form of feedback.

We manufacture in the UK and provide after sales service.RoHS Compliant.Based on the information provided by our component manufacturers,the Vortrak does NOT contain the substances restricted by the RoHS legislation at levels over the maximum concentration values.

Technical specification:

• Four track controller manufactured from quality components tested to 105 degrees centigrade.
• Suitable for '00' 'H0' and 'N' gauge layouts.
• Input:220/240 AC mains.
• Output: 4 x 12 volts DC at 1.1 amps protected,all controlled. 2 x 12 volts DC accessory outputs protected by 1 amp circuit breakers,both uncontrolled.
• Locomotive direction change by centre off power control.
• On-board Capacitor Discharge Unit (CDU) for points motor operation.Wiring diagram supplied.
• Can be supplied with European 2-pin or Schuko plug tops.
• Dimensions:311mm x 170mm x 89mm back/45mm front.(slope)

         We can supply this model in a dedicated N gauge version. Please telephone your order.

       Price £120 plus £6.90 p&p

       Overseas postage at cost.
